Heavier Linear Feel
The 60 cN actuation force gives MX2A Black a more deliberate keypress than lighter linear switches.
CHERRY · MX2A SERIES

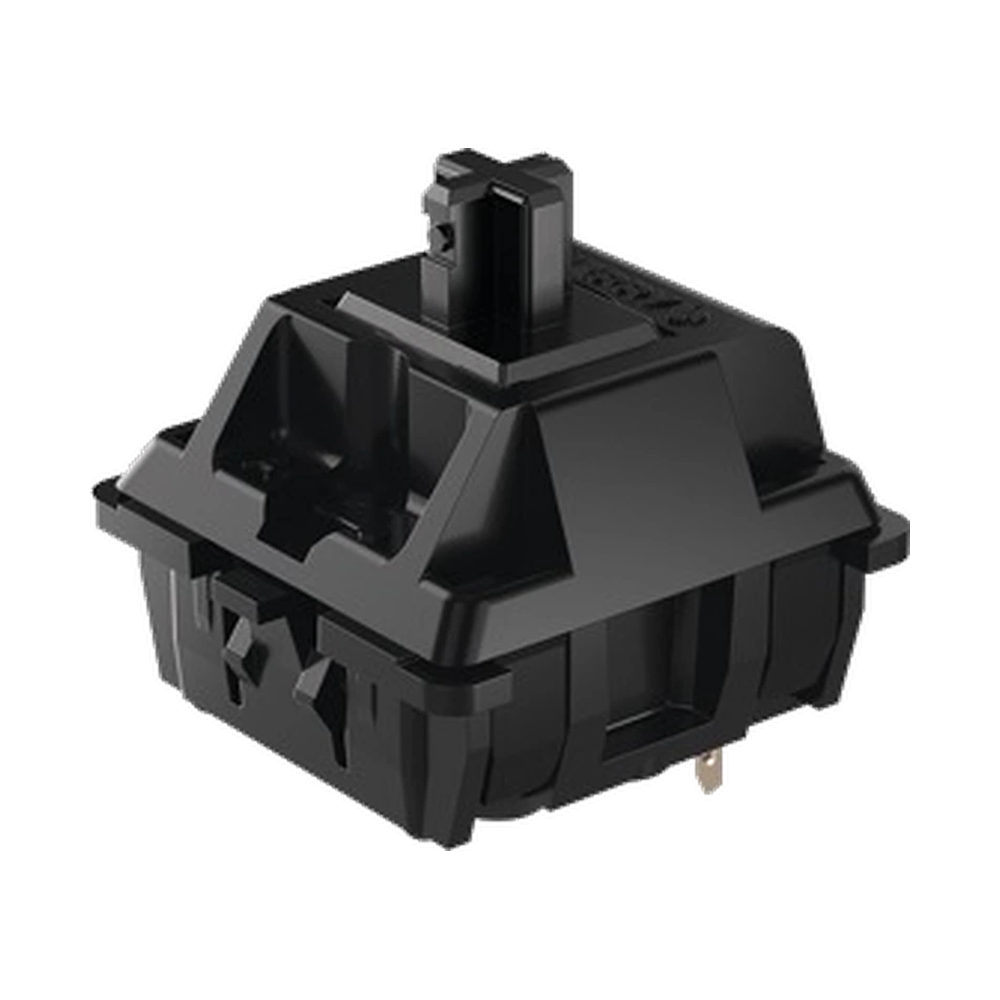

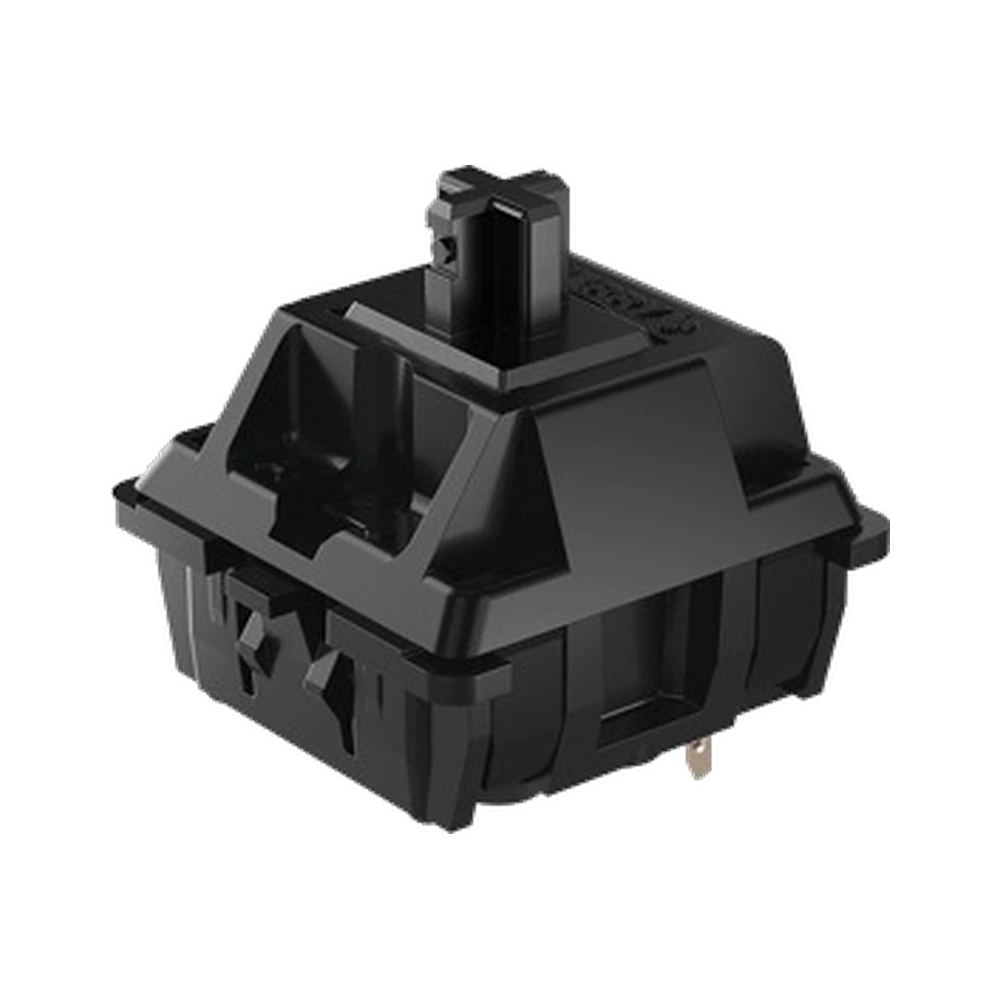

CHERRY MX2A Black Switches
CHERRY MX2A Black is a heavier linear mechanical switch built around a 60 cN actuation force and smooth, uninterrupted key travel. The stronger spring gives each keypress a more deliberate feel while retaining the full 4.0 mm travel of the CHERRY MX platform.
CHERRY MX2A BLACK01 / 03
CHERRY MX2A Red · Product view
A closer look.
Every detail matters.
Every detail matters.
$3.00USD
10 switches · $0.30 / switch
5-Pin · 10 switches
MX2A-11NW
In stock
Price and availability are checked by KeebPilot at checkout.
02 / THE ESSENTIALS
CHERRY MX2A Black at a Glance
- Type
- Linear
- Actuation
- 60 cN
- Pre-Travel
- 2.0 mm
- Total Travel
- 4.0 mm
- Mount
- 5-Pin
- Durability
- 100M+
- Lubrication
- Factory Lubricated
03 / WHY BLACK
Three reasons to choose Black.
Stronger Spring Resistance
A stronger spring provides increasing resistance through the keystroke and a firm return after release.
Smooth, Non-Clicky Typing
The switch is linear, with no tactile bump or intentional click mechanism.
04 / THE KEYSTROKE
Stronger Linear Spring
MX2A Black uses a stronger spring than lighter CHERRY linear switches, creating a more deliberate keypress and firmer return.
A good fit for users who deliberately prefer more spring resistance.
Inside the CHERRY MX2A Black
- Stem
- Spring
- Upper / lower housing
- Contact / mounting structure
CHERRY MX2A series illustrations · Colors are illustrative, not material finishes.
KeebPilot Sound Test
Hear CHERRY MX2A Black
Listen to our CHERRY MX2A Black sound test to hear how this heavier linear switch performs in a real keyboard setup.
Sound varies with keyboard case, plate, keycaps, mounting structure, and recording setup.
07 / CHOOSE YOUR FIT
5-Pin PCB Mount
This version adds two PCB locating pins. Check that your PCB supports the matching mounting holes.
5-Pin5-Pin
The 5-pin option adds two PCB locating pins for compatible PCB layouts.
Choose based on your keyboard PCB—not sound or feel.
Product photographs show the selected mounting version; confirm PCB compatibility before ordering.08 / BEFORE YOU BUILD
Will It Fit My Keyboard?
Mechanical Switch PCB
CHERRY MX2A Black uses the standard MX-style switch format. Your keyboard must support the mounting layout you select.
Match the Pin Count
This 5-pin version requires two additional PCB locating holes.
Hot-Swap Compatibility
For hot-swap boards, check the socket, PCB holes and plate layout before ordering.
09 / BUILD YOUR PACK
How Many Switches Do I Need?
5-Pin · 10 switches$3.00 USD
Exact switch counts vary by layout. Consider keeping a few spare switches for replacements.
10 / THE MX2A LINEUP
Find Your
CHERRY MX2A Feel
One family.
Different ways to feel every key.
CHERRY MX2A RedShop Red |
CHERRY MX2A BrownShop Brown |
CHERRY MX2A BlueShop Blue |
CHERRY MX2A BlackCURRENT PRODUCTBuy Black |
CHERRY MX2A Speed SilverShop Speed Silver |
CHERRY MX2A Silent RedShop Silent Red |
CHERRY MX2A OrangeShop Orange |
|---|---|---|---|---|---|---|
| FeelLinear | FeelTactile | FeelClicky Tactile | FeelLinear | FeelLinear | FeelSilent Linear | FeelLinear |
| Actuation45 cN | Actuation45 cN | Actuation50 cN | Actuation60 cN | Actuation45 cN | Actuation45 cN | Actuation55 cN |
| Pre-travel2.0 mm | Pre-travel2.0 mm | Pre-travel2.2 mm | Pre-travel2.0 mm | Pre-travel1.2 mm | Pre-travel1.9 mm | Pre-travel2.0 mm |
| Availability3-Pin + 5-Pin | Availability3-Pin + 5-Pin | Availability3-Pin + 5-Pin | Availability5-Pin only | Availability3-Pin + 5-Pin | Availability5-Pin only | Availability5-Pin only |
A good fit for users who deliberately prefer more spring resistance.
11 / IN DETAIL
About CHERRY MX2A Black Switches
Smooth Linear Travel
There is no tactile bump or click mechanism interrupting the stroke. Resistance increases progressively as the key moves downward.
Full 4.0 mm Travel
MX2A Black actuates after 2.0 mm of pre-travel and continues through a full 4.0 mm stroke.
Sound & Feel
MX2A Black has no intentional click mechanism. Most of the final keyboard sound comes from switch movement, bottom-out, return stroke and the keyboard build around it.
Before You Choose
Heavier Than Light Linear Switches. The 60 cN actuation force requires more finger force than lighter linear options and may not suit users who prefer very light keypresses.
No Tactile or Click Feedback. MX2A Black provides continuous linear travel rather than a tactile bump or audible switching event.
5-Pin PCB Compatibility Required. MX2A-11NW includes PCB locating pins. Confirm that your PCB supports a 5-pin MX-style footprint.
Explore CHERRY switches or use the MX2A Family Comparison to choose your preferred feel.
12 / GOOD TO KNOW
Frequently Asked Questions
Yes. MX2A Black is a linear switch with no tactile bump and no intentional click mechanism.
The actuation force is 60 cN.
It is heavier than many light linear switches. Its 60 cN actuation force creates a more deliberate keypress for users who prefer stronger spring resistance.
MX2A Black uses 2.0 mm pre-travel and 4.0 mm total travel.
Yes. CHERRY lists MX2A Black as factory lubricated.
No. It uses a linear switching characteristic without an intentional click mechanism.
The MX2A-11NW sold on this page is the 5-pin version with PCB fixation pins.
No. MX2A-11NW is the non-RGB version.
Yes, if the keyboard's MX-style hot-swap socket and PCB support the 5-pin footprint used by this version.
CHERRY rates MX2A Black for more than 100 million keystrokes.
The main difference is spring weight. MX2A Black uses a 60 cN actuation force, producing a heavier and more deliberate linear keypress.
