02 / THE ESSENTIALS

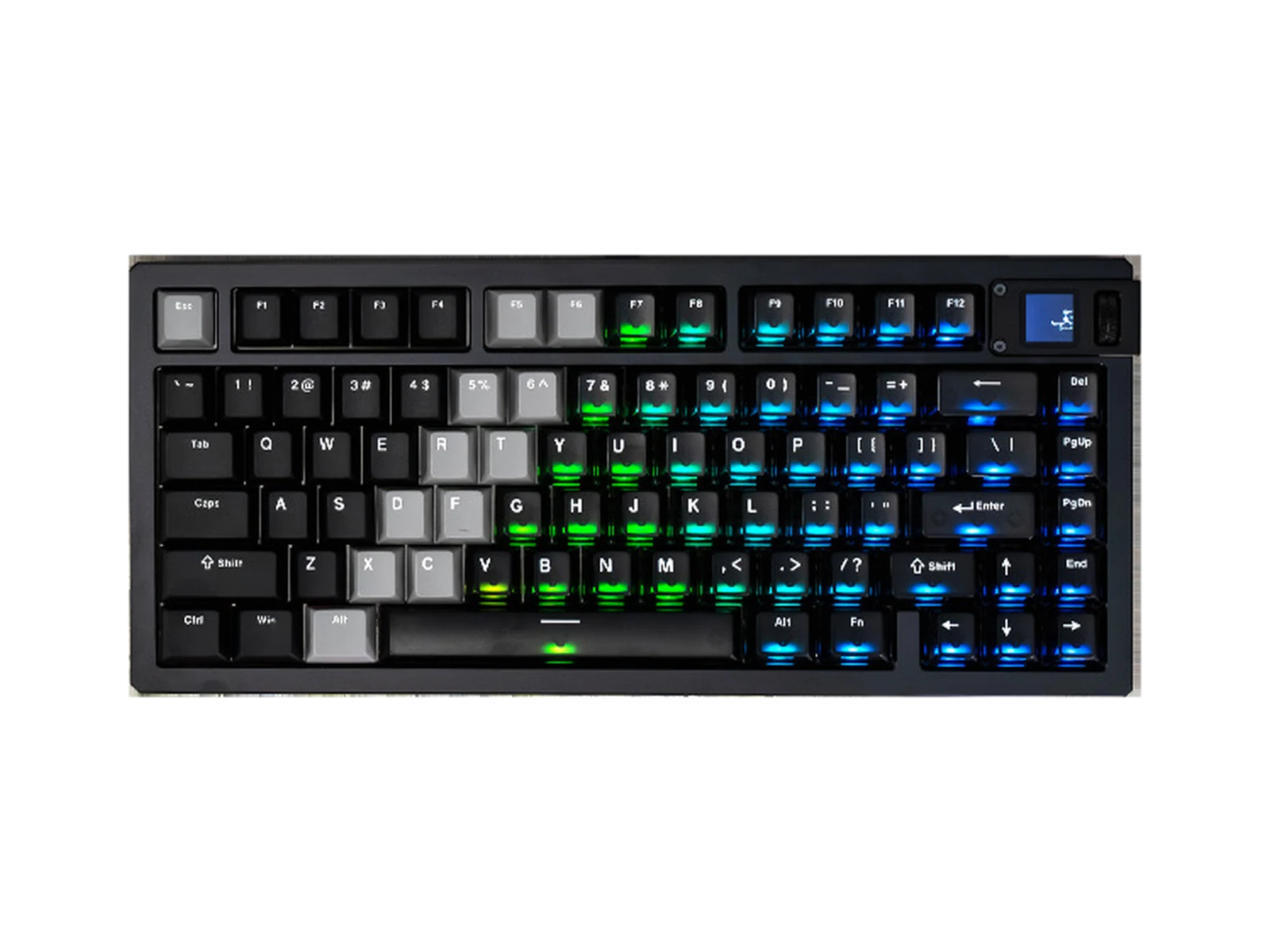

AKKO MOD007 V5 HE Magnetic Keyboard at a Glance
75%
Layout
Aluminum
Case material
Gasket
Mount
Tri-mode
Connectivity
Proprietary
Firmware
Layout & compatibility
This is a magnetic-switch platform. Use compatible N-pole-down magnetic switches; conventional mechanical MX switches are not supported. Wired and tri-mode connectivity depend on the selected configuration.
Performance & experience
PERFORMANCE CONTROL

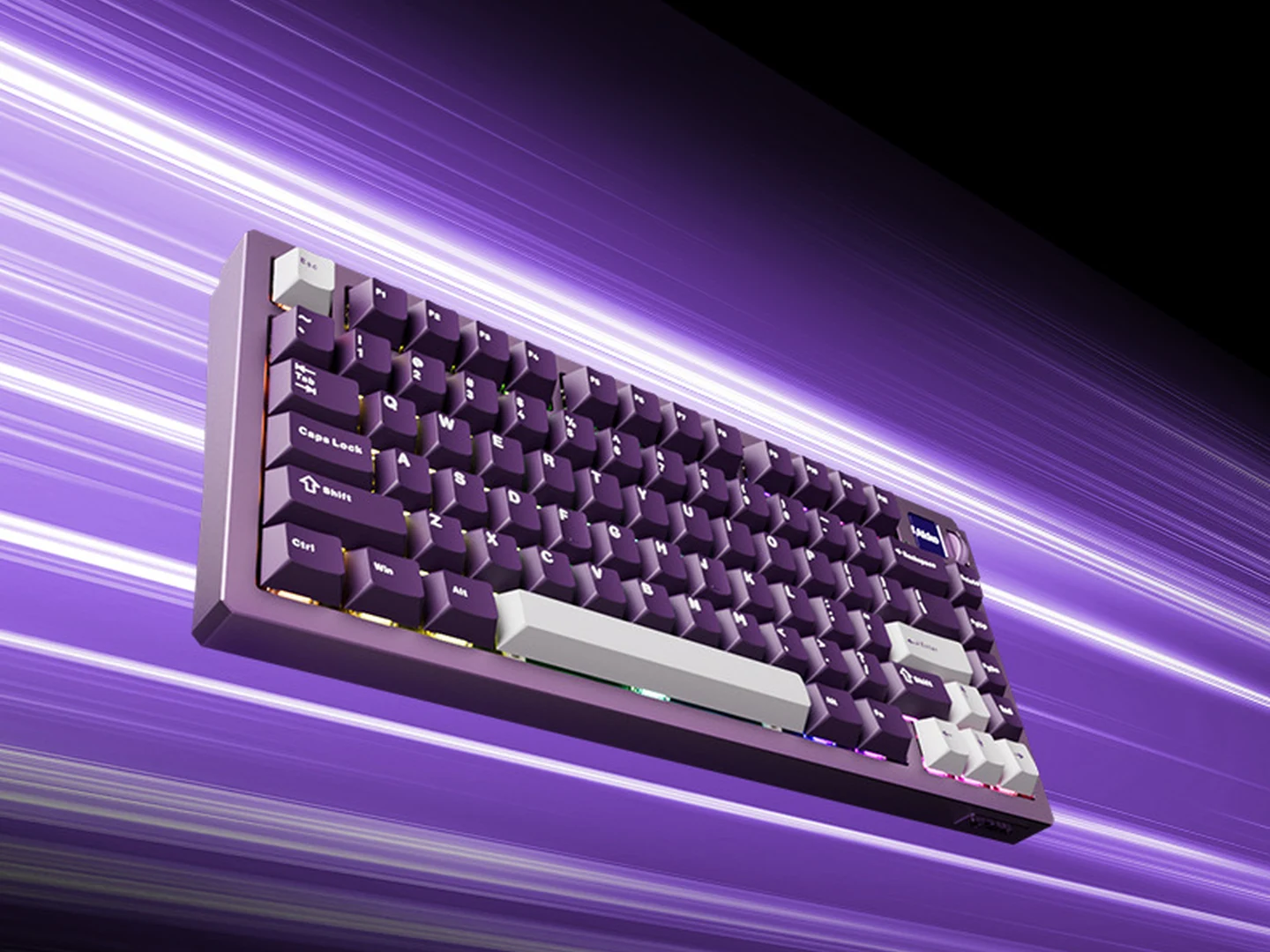

Tune More Than Just Actuation
Rapid Trigger is the headline feature, but the MOD007 V5 HE is built around a broader set of magnetic-switch controls. Adjustable actuation starts from 0.1 mm, while Akko also exposes Snap Key, Mod-Tap, Dynamic Keystrokes and Toggle Key.
The board is specified for up to 8K polling on supported modes and a 32K scan rate. The practical value is the combination of frequent input scanning, adjustable trigger points and software-defined key behavior.
- Adjustable actuation from 0.1 mm
- Rapid Trigger plus Snap Key, Mod-Tap, DKS and Toggle Key
- Up to 8K polling with 32K scan rate
Why it matters: Choose the MOD007 V5 HE for its configurable input system, not just because “8K” appears on the spec sheet.
DAILY USE
A Screen, Wheel and Driver for More Than One Game
The 75% layout keeps dedicated navigation keys while saving space compared with a full-size board. A programmable display, rotary control and addressable RGB add useful desk features without requiring a larger layout.
The driver is where Rapid Trigger, per-key actuation and DKS become configurable rather than fixed specifications. Buyers who want the advanced functions should expect to spend some time setting up profiles.
- Compact 75% / 82-key layout
- Programmable display and rotary control
- Windows/Web driver access
Best fit: The MOD007 V5 HE makes the most sense for users who will use both its magnetic-switch tuning and its premium desk features.
CONSTRUCTION

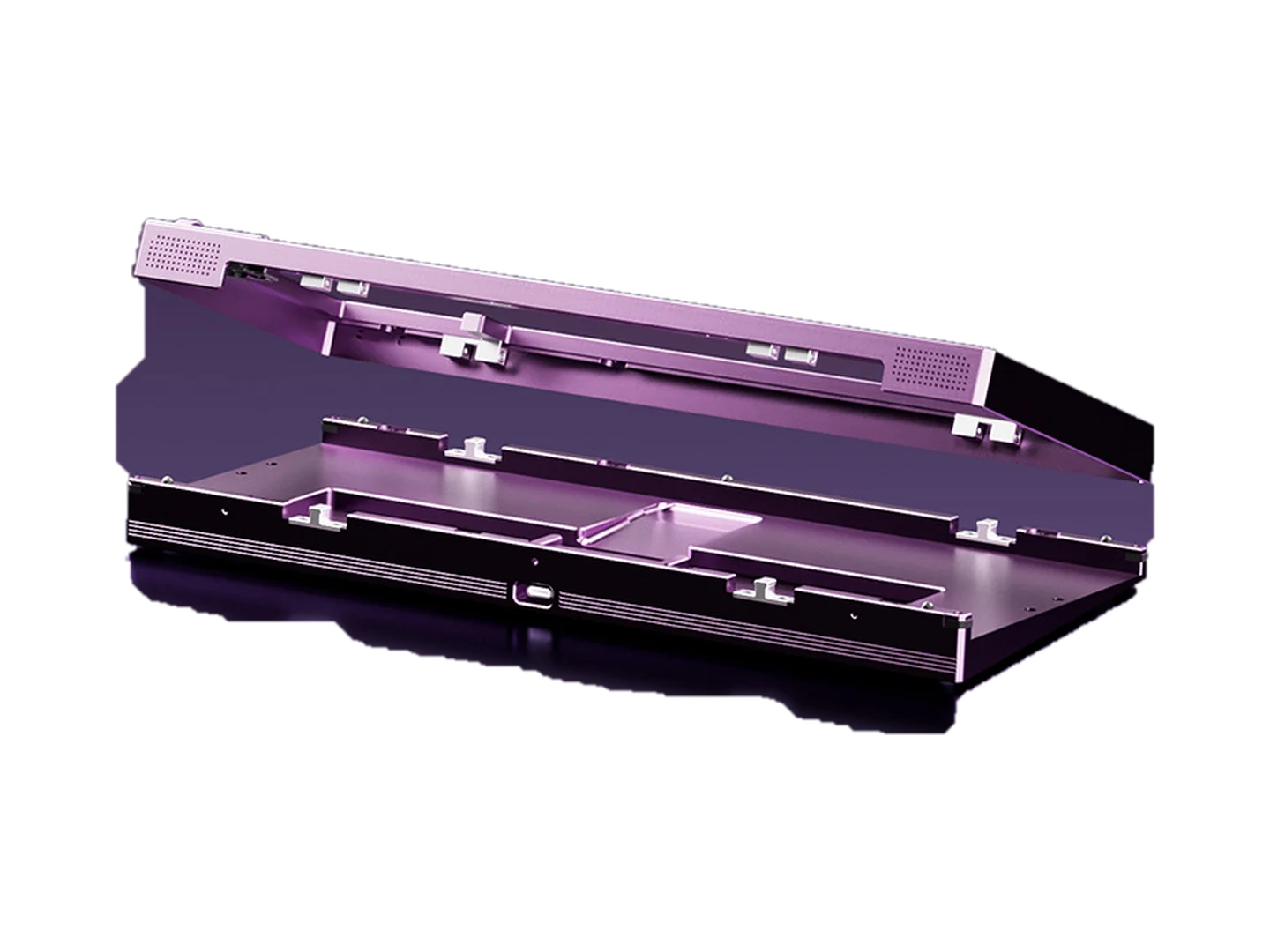

CNC Aluminum, Gasket Mount, Real Case Access
Many Hall Effect keyboards focus almost entirely on input performance. The MOD007 V5 HE adds a CNC aluminum chassis, gasket mounting, layered dampening and decorative rear-weight treatments.
The ball-catch quick-release case is useful for buyers who care about more than factory settings. Easier internal access makes inspection and configuration changes less cumbersome than a screw-heavy enclosure.
- CNC aluminum case
- Gasket-mounted dampened structure
- Ball-catch quick-release construction
Who should care: A strong fit for buyers who want Hall Effect performance without stepping down to a light gaming chassis.
Is this the right keyboard for you?
CONFIGURATION

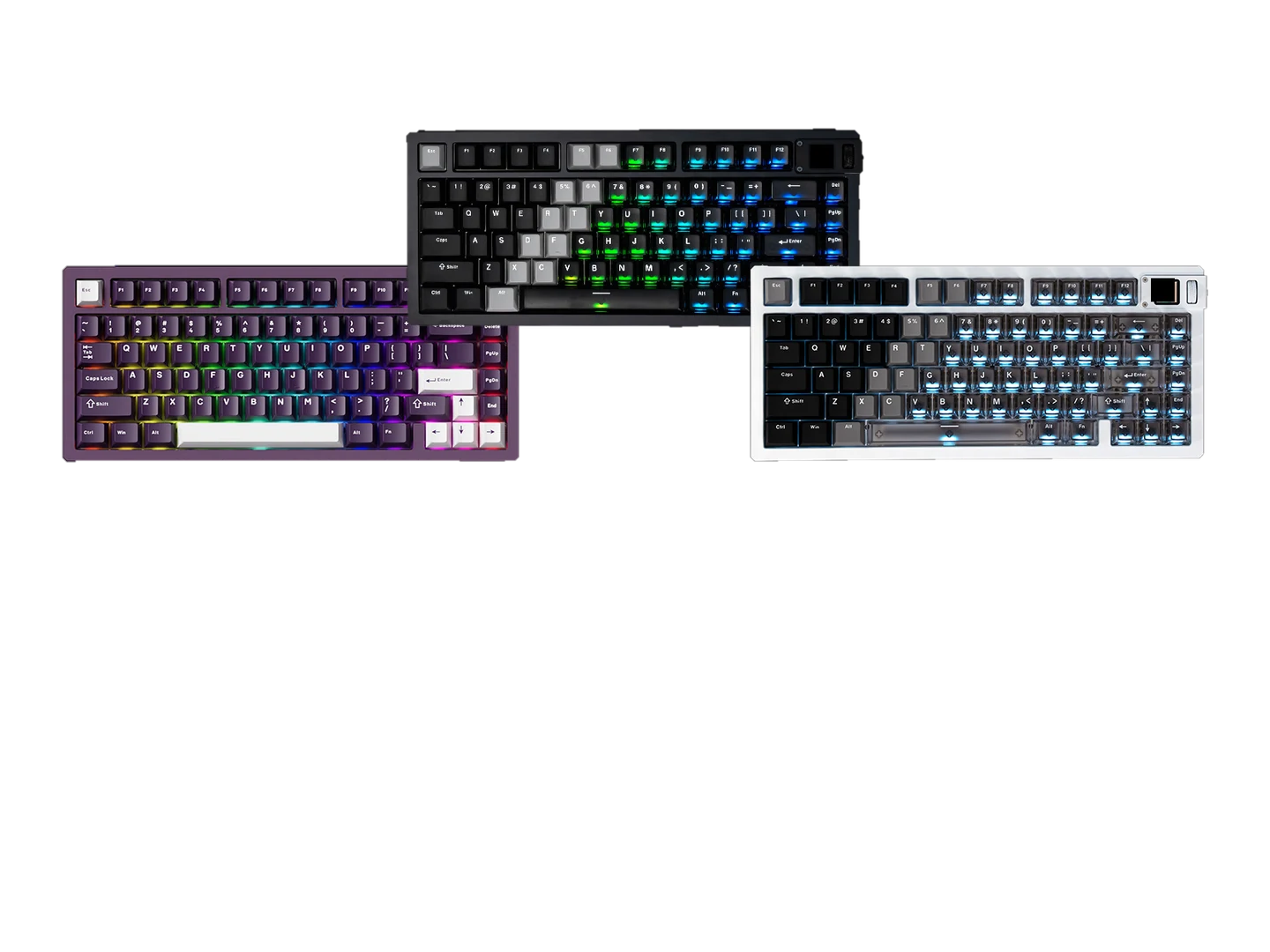

Wired, Tri-Mode, FR4 or Aluminum?
The MOD007 V5 HE is not one fixed hardware configuration. Depending on the selected variation, the keyboard can be wired or tri-mode, use an aluminum or FR4 plate, and come with Astrolink or AstroAim magnetic switches.
Choose tri-mode if you want 2.4 GHz and Bluetooth in addition to USB. FR4 generally offers more flex while aluminum is firmer. Treat mode, plate and switch as separate purchase decisions rather than choosing by color alone.
- Wired or tri-mode depends on variation
- Aluminum and FR4 provide different build directions
- Astrolink and AstroAim differ in force/travel specs
Buying rule: Check the selected configuration before ordering; mode, plate and switch are real hardware differences.
Check before buying
- At roughly 1.8 kg, the board is substantial rather than travel-focused.
- Connectivity, plate material and switch type vary by configuration; check the selected option.
- It does not support conventional mechanical MX switches; use compatible magnetic switches.
Who it suits
Buyers who prefer a substantial 75% keyboard with gasket mounting, layered dampening and plate options.
Users who want gaming-focused magnetic controls plus practical everyday desk features.
Detailed specifications
Brand
AKKO
Layout
75%
Mounting Style
Gasket
Case Material
Aluminum
PCB
Hot-swap
Connectivity
Tri-mode
Firmware Support
Proprietary
Weight
1800 g
Good to Know
Build notes
Choose the plate and switch combination deliberately. The board uses compatible magnetic switches rather than conventional MX mechanical switches. Ball-catch construction allows tool-free case access. Tri-mode versions add an 8000 mAh battery and wireless hardware; wired versions do not. Use Akko’s supported driver to configure Rapid Trigger, actuation and DKS.
Questions about AKKO MOD007 V5 HE Magnetic Keyboard
Is the AKKO MOD007 V5 HE a 75% keyboard?
Yes. It uses a 75% layout with 82 keys, keeping dedicated navigation keys while saving desk space compared with larger layouts.
Can I use normal mechanical switches in the MOD007 V5 HE?
No. It is built for compatible magnetic switches and should not be treated as a standard MX mechanical hot-swap keyboard. Use supported magnetic switch options instead.
What is the difference between wired and tri-mode versions?
Wired versions use USB connectivity. Tri-mode versions add 2.4 GHz and Bluetooth and include an 8000 mAh battery. Check the selected variation before ordering.
Should I choose the FR4 or aluminum plate?
FR4 generally offers more flex and a softer response, while aluminum is the firmer option. The selected switch and the rest of the build also influence feel and sound.
What is the difference between Astrolink and AstroAim magnetic switches?
Astrolink is rated at 36 ± 5 gf initial force, 3.4 mm total travel and 50 ± 5 gf end force. AstroAim is rated at 35 gf initial force, 3.5 ± 0.1 mm travel and 55 gf end force.
Does the MOD007 V5 HE support Rapid Trigger?
Yes. Rapid Trigger is part of the magnetic input system alongside adjustable actuation, Snap Key, Mod-Tap, DKS and Toggle Key.
Does the MOD007 V5 HE have 8K polling?
Supported performance configurations offer polling up to 8K, but connection mode matters. Do not assume every wireless mode runs at the same polling rate.
What software does the MOD007 V5 HE use?
It uses Akko’s supported Windows/Web driver environment for actuation, Rapid Trigger, DKS and other magnetic-switch settings.
